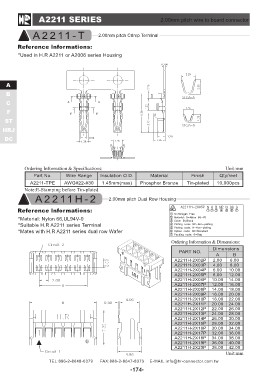

A2211 SERIES 2.00mm pitch wire to board connector

A 2 2 11 - T 2.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2211 or A2006 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A2211-TPE AWG#22-#30 1.45mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A 2 2 11 H - 2 2.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2211 series Terminal
*Mates with H.R A2211 series dual row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A2211H-2X02P AB
A2211H-2X03P
A2211H-2X04P 2.00 6.00
A2211H-2X05P 4.00 8.00
A2211H-2X06P 6.00 10.00
A2211H-2X07P 8.00 12.00
A2211H-2X08P 10.00 14.00
A2211H-2X09P 12.00 16.00
A2211H-2X10P 14.00 18.00
A2211H-2X11P 16.00 20.00
A2211H-2X12P 18.00 22.00
A2211H-2X13P 20.00 24.00
A2211H-2X14P 22.00 26.00
A2211H-2X15P 24.00 28.00
A2211H-2X16P 26.00 30.00
A2211H-2X17P 28.00 32.00
A2211H-2X18P 30.00 34.00
A2211H-2X19P 32.00 36.00
A2211H-2X20P 34.00 38.00
36.00 40.00
38.00 42.00

Unit:mm
