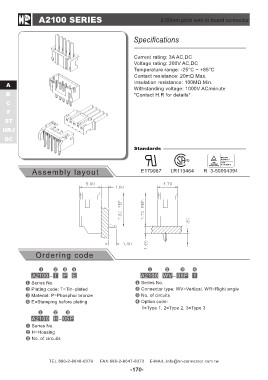

A2100 SERIES 2.00mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 300V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 1000V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code A2100 WV - 05P 1

A2100 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. No. of circuits
Plating code: T=Tin–plated Option code:
Material: P=Phosphor bronze 1=Type 1, 2=Type 2, 3=Type 3
E=Stamping before plating

A2100 H - 05P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
