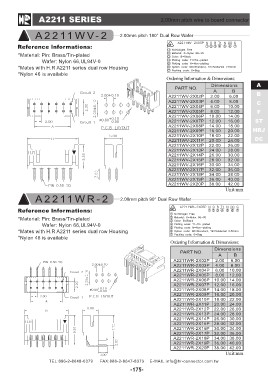

A2211 SERIES 2.00mm pitch wire to board connector

A 2 2 11 W V- 2 2.00mm pitch 180° Dual Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information & Dimensions:
Wafer: Nylon 66,UL94V-0

*Mates with H.R A2211 series dual row Housing
*Nylon 46 is available

PART NO. Dimensions A
B
A2211WV-2X02P AB C
A2211WV-2X03P F
A2211WV-2X04P 2.00 6.00 ST
A2211WV-2X05P HRJ
A2211WV-2X06P 4.00 8.00 DC
A2211WV-2X07P 6.00 10.00
A2211WV-2X08P 8.00 12.00
A2211WV-2X09P 10.00 14.00
A2211WV-2X10P 12.00 16.00
A2211WV-2X11P 14.00 18.00
A2211WV-2X12P 16.00 20.00
A2211WV-2X13P 18.00 22.00
A2211WV-2X14P 20.00 24.00
A2211WV-2X15P 22.00 26.00
A2211WV-2X16P 24.00 28.00
A2211WV-2X17P 26.00 30.00
A2211WV-2X18P 28.00 32.00
A2211WV-2X19P 30.00 34.00
A2211WV-2X20P 32.00 36.00
34.00 38.00
36.00 40.00
38.00 42.00

Unit:mm

A 2 2 1 1 W R - 2 2.00mm pitch 90° Dual Row Wafer

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A2211 series dual row Housing
*Nylon 46 is available

PART NO. Dimensions

A2211WR-2X02P AB
A2211WR-2X03P
A2211WR-2X04P 2.00 6.00
A2211WR-2X05P 4.00 8.00
A2211WR-2X06P 6.00 10.00
A2211WR-2X07P 8.00 12.00
A2211WR-2X08P 10.00 14.00
A2211WR-2X09P 12.00 16.00
A2211WR-2X10P 14.00 18.00
A2211WR-2X11P 16.00 20.00
A2211WR-2X12P 18.00 22.00
A2211WR-2X13P 20.00 24.00
A2211WR-2X14P 22.00 26.00
A2211WR-2X15P 24.00 28.00
A2211WR-2X16P 26.00 30.00
A2211WR-2X17P 28.00 32.00
A2211WR-2X18P 30.00 34.00
A2211WR-2X19P 32.00 36.00
A2211WR-2X20P 34.00 38.00
36.00 40.00
38.00 42.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-175-
