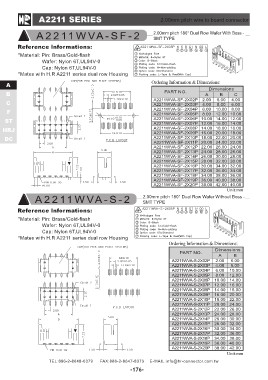

A2211 SERIES
A 2 2 11 W VA - S F - 2
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A2211 series dual row Housing
A Ordering Information & Dimensions:
B
C PART NO.
F ABC
ST
HRJ
DC
A 2 2 11 W VA - S - 2
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A2211 series dual row Housing
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
2.00mm pitch wire to board connector
2.00mm pitch 180° Dual Row Wafer With Boss -
SMT TYPE
Dimensions
A2211WVA-SF-2X02P 2.00 6.00 4.00
A2211WVA-SF-2X03P 4.00 8.00 6.00
A2211WVA-SF-2X04P 6.00 10.00 8.00
A2211WVA-SF-2X05P 8.00 12.00 10.00
A2211WVA-SF-2X06P 10.00 14.00 12.00
A2211WVA-SF-2X07P 12.00 16.00 14.00
A2211WVA-SF-2X08P 14.00 18.00 16.00
A2211WVA-SF-2X09P 16.00 20.00 18.00
A2211WVA-SF-2X10P 18.00 22.00 20.00
A2211WVA-SF-2X11P 20.00 24.00 22.00
A2211WVA-SF-2X12P 22.00 26.00 24.00
A2211WVA-SF-2X13P 24.00 28.00 26.00
A2211WVA-SF-2X14P 26.00 30.00 28.00
A2211WVA-SF-2X15P 28.00 32.00 30.00
A2211WVA-SF-2X16P 30.00 34.00 32.00
A2211WVA-SF-2X17P 32.00 36.00 34.00
A2211WVA-SF-2X18P 34.00 38.00 36.00
A2211WVA-SF-2X19P 36.00 40.00 38.00
A2211WVA-SF-2X20P 38.00 42.00 40.00
Unit:mm
2.00mm pitch 180° Dual Row Wafer Without Boss -
SMT TYPE
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2211WVA-S-2X02P 2.00 6.00
A2211WVA-S-2X03P 4.00 8.00
A2211WVA-S-2X04P 6.00 10.00
A2211WVA-S-2X05P 8.00 12.00
A2211WVA-S-2X06P 10.00 14.00
A2211WVA-S-2X07P 12.00 16.00
A2211WVA-S-2X08P 14.00 18.00
A2211WVA-S-2X09P 16.00 20.00
A2211WVA-S-2X10P 18.00 22.00
A2211WVA-S-2X11P 20.00 24.00
A2211WVA-S-2X12P 22.00 26.00
A2211WVA-S-2X13P 24.00 28.00
A2211WVA-S-2X14P 26.00 30.00
A2211WVA-S-2X15P 28.00 32.00
A2211WVA-S-2X16P 30.00 34.00
A2211WVA-S-2X17P 32.00 36.00
A2211WVA-S-2X18P 34.00 38.00
A2211WVA-S-2X19P 36.00 40.00
A2211WVA-S-2X20P 38.00 42.00
Unit:mm
