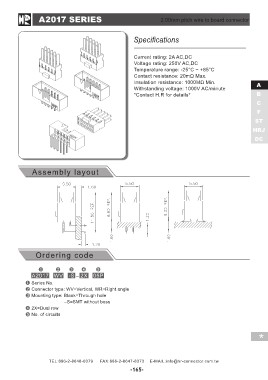

A2017 SERIES 2.00mm pitch wire to board connector
Assembly layout
Specifications
Current rating: 2A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1000V AC/minute HRJ
*Contact H.R for details* DC
Ordering code
A2017 WV -S - 2X 05P
Series No.
Connector type: WV=Vertical, WR=Right angle
Mounting type: Blank=Through hole
–S=SMT without boss
2X=Dual row
No. of circuits
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-165-
