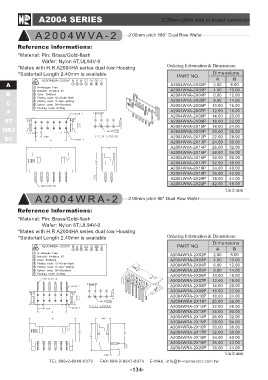

A2004 SERIES 2.00mm pitch wire to board connector

A 2 0 0 4 W V A - 2 2.00mm pitch 180° Dual Row Wafer

Reference lnformations:

*Material: Pin: Brass/Gold-flash

Wafer: Nylon 6T,UL94V-0 Ordering Information & Dimensions:
*Mates with H.R A2004HA series dual row Housing
*Soldertail Length 2.40mm is available PART NO. Dimensions

A A2004WVA-2X02P AB
B A2004WVA-2X03P
C A2004WVA-2X04P 2.00 8.00
F A2004WVA-2X05P 4.00 10.00
ST A2004WVA-2X06P 6.00 12.00
HRJ A2004WVA-2X07P 8.00 14.00
DC A2004WVA-2X08P 10.00 16.00
A2004WVA-2X09P 12.00 18.00
A2004WVA-2X10P 14.00 20.00
A2004WVA-2X11P 16.00 22.00
A2004WVA-2X12P 18.00 24.00
A2004WVA-2X13P 20.00 26.00
A2004WVA-2X14P 22.00 28.00
A2004WVA-2X15P 24.00 30.00
A2004WVA-2X16P 26.00 32.00
A2004WVA-2X17P 28.00 34.00
A2004WVA-2X18P 30.00 36.00
A2004WVA-2X19P 32.00 38.00
A2004WVA-2X20P 34.00 40.00
A2004WVA-2X22P 36.00 42.00
38.00 44.00
42.00 48.00

Unit:mm

A 2 0 0 4 W R A - 2 2.00mm pitch 90° Dual Row Wafer

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A2004HA series dual row Housing
*Soldertail Length 2.40mm is available

PART NO. Dimensions

A2004WRA-2X02P AB
A2004WRA-2X03P
A2004WRA-2X04P 2.00 8.00
A2004WRA-2X05P 4.00 10.00
A2004WRA-2X06P 6.00 12.00
A2004WRA-2X07P 8.00 14.00
A2004WRA-2X08P 10.00 16.00
A2004WRA-2X09P 12.00 18.00
A2004WRA-2X10P 14.00 20.00
A2004WRA-2X11P 16.00 22.00
A2004WRA-2X12P 18.00 24.00
A2004WRA-2X13P 20.00 26.00
A2004WRA-2X14P 22.00 28.00
A2004WRA-2X15P 24.00 30.00
A2004WRA-2X16P 26.00 32.00
A2004WRA-2X17P 28.00 34.00
A2004WRA-2X18P 30.00 36.00
A2004WRA-2X19P 32.00 38.00
A2004WRA-2X20P 34.00 40.00
36.00 42.00
38.00 44.00

Unit:mm
