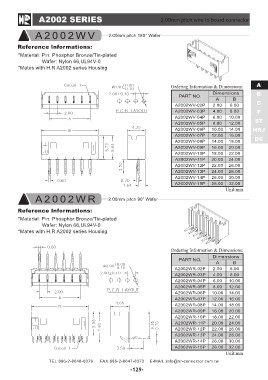

A2002 SERIES 2.00mm pitch wire to board connector
A2002WV 2.00mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2002 series Housing
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
A2002WV-02P 2.00 6.00 HRJ
DC
A2002WV-03P 4.00 8.00
A2002WV-04P 6.00 10.00
A2002WV-05P 8.00 12.00
A2002WV-06P 10.00 14.00
A2002WV-07P 12.00 16.00
A2002WV-08P 14.00 18.00
A2002WV-09P 16.00 20.00
A2002WV-10P 18.00 22.00
A2002WV-11P 20.00 24.00
A2002WV-12P 22.00 26.00
A2002WV-13P 24.00 28.00
A2002WV-14P 26.00 30.00
A2002WV-15P 28.00 32.00
Unit:mm
A2002WR 2.00mm pitch 90˚ Wafer
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2002 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2002WR-02P 2.00 6.00
A2002WR-03P 4.00 8.00
A2002WR-04P 6.00 10.00
A2002WR-05P 8.00 12.00
A2002WR-06P 10.00 14.00
A2002WR-07P 12.00 16.00
A2002WR-08P 14.00 18.00
A2002WR-09P 16.00 20.00
A2002WR-10P 18.00 22.00
A2002WR-11P 20.00 24.00
A2002WR-12P 22.00 26.00
A2002WR-13P 24.00 28.00
A2002WR-14P 26.00 30.00
A2002WR-15P 28.00 32.00
Unit:mm
