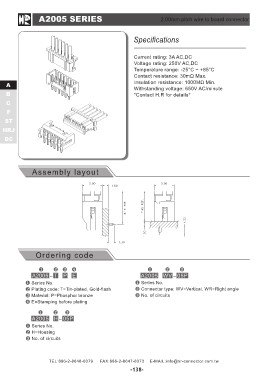

A2005 SERIES 2.00mm pitch wire to board connector
A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 30mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 650V AC/minute
Assembly layout *Contact H.R for details*
Ordering code A2005 WV - 05P
A2005 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. No. of circuits
Plating code: T=Tin-plated, Gold-flash
Material: P=Phosphor bronze
E=Stamping before plating
A2005 H - 05P
Series No.
H=Housing
No. of circuits
