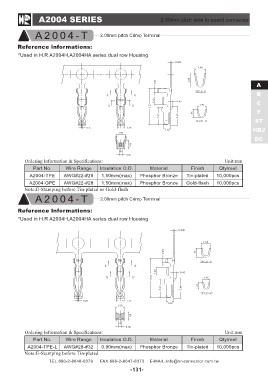

A2004 SERIES 2.00mm pitch wire to board connector
A2004-T 2.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2004H,A2004HA series dual row Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A2004-TPE AWG#22-#28 1.50mm(max) Phosphor Bronze Gold-flash
A2004-GPE AWG#22-#28 1.50mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash
A2004-T 2.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2004H,A2004HA series dual row Housing
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
A2004-TPE-L AWG#28-#32 0.90mm(max) Phosphor Bronze Tin-plated 10,000pcs
Note:E-Stamping before Tin-plated
