P. 155

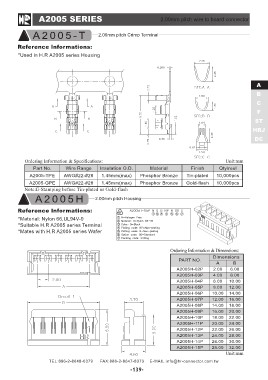

A2005 SERIES 2.00mm pitch wire to board connector
A2005-T 2.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2005 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A2005-TPE AWG#22-#28 1.45mm(max) Phosphor Bronze Gold-flash
A2005-GPE AWG#22-#28 1.45mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash
A 2 0 0 5 H 2.00mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2005 series Terminal
*Mates with H.R A2005 series Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2005H-02P 2.00 6.00
A2005H-03P 4.00 8.00
A2005H-04P 6.00 10.00
A2005H-05P 8.00 12.00
A2005H-06P 10.00 14.00
A2005H-07P 12.00 16.00
A2005H-08P 14.00 18.00
A2005H-09P 16.00 20.00
A2005H-10P 18.00 22.00
A2005H-11P 20.00 24.00
A2005H-12P 22.00 26.00
A2005H-13P 24.00 28.00
A2005H-14P 26.00 30.00
A2005H-15P 28.00 32.00
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-139-
