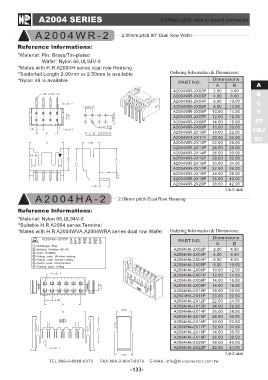

A2004 SERIES 2.00mm pitch wire to board connector

A2004WR-2 2.00mm pitch 90° Dual Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information & Dimensions:
Wafer: Nylon 66,UL94V-0
PART NO. Dimensions A
*Mates with H.R A2004H series dual row Housing B
*Soldertail Length 2.00mm or 2.50mm is available A2004WR-2X02P AB C
*Nylon 46 is available A2004WR-2X03P F
A2004WR-2X04P 2.00 6.00 ST
A2004WR-2X05P 4.00 8.00 HRJ
A2004WR-2X06P 6.00 10.00 DC
A2004WR-2X07P 8.00 12.00
A2004WR-2X08P 10.00 14.00
A2004WR-2X09P 12.00 16.00
A2004WR-2X10P 14.00 18.00
A2004WR-2X11P 16.00 20.00
A2004WR-2X12P 18.00 22.00
A2004WR-2X13P 20.00 24.00
A2004WR-2X14P 22.00 26.00
A2004WR-2X15P 24.00 28.00
A2004WR-2X16P 26.00 30.00
A2004WR-2X17P 28.00 32.00
A2004WR-2X18P 30.00 34.00
A2004WR-2X19P 32.00 36.00
A2004WR-2X20P 34.00 38.00
36.00 40.00
38.00 42.00

Unit:mm

A 2 0 0 4 H A - 2 2.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0 Ordering Information & Dimensions:
*Suitable H.R A2004 series Terminal
*Mates with H.R A2004WVA,A2004WRA series dual row Wafer

PART NO. Dimensions

A2004HA-2X02P AB
A2004HA-2X03P
A2004HA-2X04P 2.00 4.50
A2004HA-2X05P 4.00 6.50
A2004HA-2X06P 6.00 8.50
A2004HA-2X07P 8.00 10.50
A2004HA-2X08P 10.00 12.50
A2004HA-2X09P 12.00 14.50
A2004HA-2X10P 14.00 16.50
A2004HA-2X11P 16.00 18.50
A2004HA-2X12P 18.00 20.50
A2004HA-2X13P 20.00 22.50
A2004HA-2X14P 22.00 24.50
A2004HA-2X15P 24.00 26.50
A2004HA-2X16P 26.00 28.50
A2004HA-2X17P 28.00 30.50
A2004HA-2X18P 30.00 32.50
A2004HA-2X19P 32.00 34.50
A2004HA-2X20P 34.00 36.50
A2004HA-2X22P 36.00 38.50
38.00 40.50
42.00 44.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
