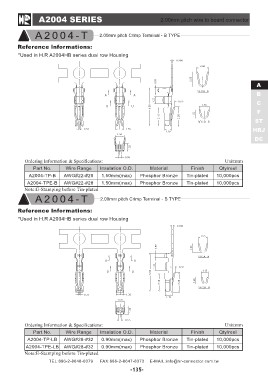

A2004 SERIES 2.00mm pitch wire to board connector

A2004-T 2.00mm pitch Crimp Terminal - B TYPE

Reference lnformations:
*Used in H.R A2004HB series dual row Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A2004-TP-B AWG#22-#28 1.50mm(max) Phosphor Bronze Tin-plated

A2004-TPE-B AWG#22-#28 1.50mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated

A2004-T 2.00mm pitch Crimp Terminal - B TYPE

Reference lnformations:
*Used in H.R A2004HB series dual row Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish

A2004-TP-LB AWG#28-#32 0.90mm(max) Phosphor Bronze Tin-plated 10,000pcs

A2004-TPE-LB AWG#28-#32 0.90mm(max) Phosphor Bronze Tin-plated 10,000pcs
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-135-
