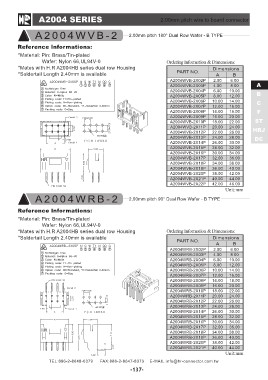

A2004 SERIES 2.00mm pitch wire to board connector

A 2 0 0 4 W V B - 2 2.00mm pitch 180° Dual Row Wafer - B TYPE

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information & Dimensions:
Wafer: Nylon 66,UL94V-0
PART NO. Dimensions
*Mates with H.R A2004HB series dual row Housing
*Soldertail Length 2.40mm is available A2004WVB-2X02P AB
A2004WVB-2X03P
A2004WVB-2X04P 2.00 6.00 A
A2004WVB-2X05P 4.00 8.00 B
A2004WVB-2X06P 6.00 10.00 C
A2004WVB-2X07P 8.00 12.00 F
A2004WVB-2X08P 10.00 14.00 ST
A2004WVB-2X09P 12.00 16.00 HRJ
A2004WVB-2X10P 14.00 18.00 DC
A2004WVB-2X11P 16.00 20.00
A2004WVB-2X12P 18.00 22.00
A2004WVB-2X13P 20.00 24.00
A2004WVB-2X14P 22.00 26.00
A2004WVB-2X15P 24.00 28.00
A2004WVB-2X16P 26.00 30.00
A2004WVB-2X17P 28.00 32.00
A2004WVB-2X18P 30.00 34.00
A2004WVB-2X19P 32.00 36.00
A2004WVB-2X20P 34.00 38.00
A2004WVB-2X21P 36.00 40.00
A2004WVB-2X22P 38.00 42.00
40.00 44.00
42.00 46.00

Unit:mm

A 2 0 0 4 W R B - 2 2.00mm pitch 90° Dual Row Wafer - B TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated PART NO. Dimensions
Wafer: Nylon 66,UL94V-0
A2004WRB-2X02P AB
*Mates with H.R A2004HB series dual row Housing A2004WRB-2X03P
*Soldertail Length 2.40mm is available A2004WRB-2X04P 2.00 6.00
A2004WRB-2X05P 4.00 8.00
A2004WRB-2X06P 6.00 10.00
A2004WRB-2X07P 8.00 12.00
A2004WRB-2X08P 10.00 14.00
A2004WRB-2X09P 12.00 16.00
A2004WRB-2X10P 14.00 18.00
A2004WRB-2X11P 16.00 20.00
A2004WRB-2X12P 18.00 22.00
A2004WRB-2X13P 20.00 24.00
A2004WRB-2X14P 22.00 26.00
A2004WRB-2X15P 24.00 28.00
A2004WRB-2X16P 26.00 30.00
A2004WRB-2X17P 28.00 32.00
A2004WRB-2X18P 30.00 34.00
A2004WRB-2X19P 32.00 36.00
A2004WRB-2X20P 34.00 38.00
A2004WRB-2X21P 36.00 40.00
38.00 42.00
40.00 44.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
