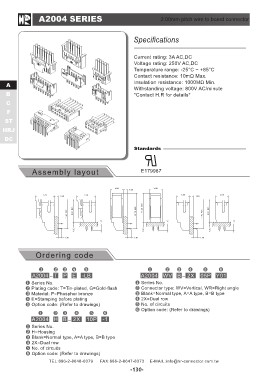

A2004 SERIES 2.00mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 800V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987

Ordering code

A2004 - T P E -LB A2004 WV B - 2X 05P Y01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Blank=Normal type, A=A type, B=B type
E=Stamping before plating 2X=Dual row
Option code: (Refer to drawings) No. of circuits
Option code: (Refer to drawings)

A2004 H B - 2X 10P -1

Series No.
H=Housing
Blank=Normal type, A=A type, B=B type
2X=Dual row
No. of circuits
Option code: (Refer to drawings)

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-130-
