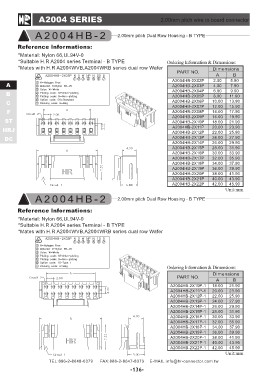

A2004 SERIES 2.00mm pitch wire to board connector

A 2 0 0 4 H B - 2 2.00mm pitch Dual Row Housing - B TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0 Ordering Information & Dimensions:
*Suitable H.R A2004 series Terminal - B TYPE
*Mates with H.R A2004WVB,A2004WRB series dual row Wafer PART NO. Dimensions

A A2004HB-2X02P AB
B A2004HB-2X03P
C A2004HB-2X04P 2.00 5.90
F A2004HB-2X05P 4.00 7.90
ST A2004HB-2X06P 6.00 9.90
HRJ A2004HB-2X07P 8.00 11.90
DC A2004HB-2X08P 10.00 13.90
A2004HB-2X09P 12.00 15.90
A2004HB-2X10P 14.00 17.90
A2004HB-2X11P 16.00 19.90
A2004HB-2X12P 18.00 21.90
A2004HB-2X13P 20.00 23.90
A2004HB-2X14P 22.00 25.90
A2004HB-2X15P 24.00 27.90
A2004HB-2X16P 26.00 29.90
A2004HB-2X17P 28.00 31.90
A2004HB-2X18P 30.00 33.90
A2004HB-2X19P 32.00 35.90
A2004HB-2X20P 34.00 37.90
A2004HB-2X21P 36.00 39.90
A2004HB-2X22P 38.00 41.90
40.00 43.90
42.00 45.90

Unit:mm

A 2 0 0 4 H B - 2 2.00mm pitch Dual Row Housing - B TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2004 series Terminal - B TYPE
*Mates with H.R A2004WVB,A2004WRB series dual row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A2004HB-2X10P-1 AB
A2004HB-2X11P-1
A2004HB-2X12P-1 18.00 21.90
A2004HB-2X13P-1 20.00 23.90
A2004HB-2X14P-1 22.00 25.90
A2004HB-2X15P-1 24.00 27.90
A2004HB-2X16P-1 26.00 29.90
A2004HB-2X17P-1 28.00 31.90
A2004HB-2X18P-1 30.00 33.90
A2004HB-2X19P-1 32.00 35.90
A2004HB-2X20P-1 34.00 37.90
A2004HB-2X21P-1 36.00 39.90
A2004HB-2X22P-1 38.00 41.90
40.00 43.90
42.00 45.90

Unit:mm
