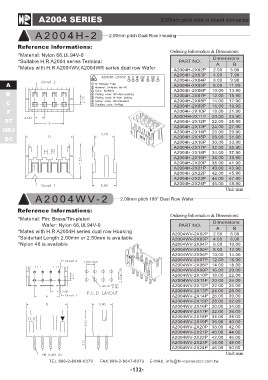

Page 148 - JOINT TECH

A2004 SERIES 2.00mm pitch wire to board connector

A2004H-2 2.00mm pitch Dual Row Housing

Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2004 series Terminal PART NO. Dimensions
*Mates with H.R A2004WV,A2004WR series dual row Wafer
A2004H-2X02P AB
A A2004H-2X03P
B A2004H-2X04P 2.00 5.90
C A2004H-2X05P 4.00 7.90
F A2004H-2X06P 6.00 9.90
ST A2004H-2X07P 8.00 11.90
HRJ A2004H-2X08P 10.00 13.90
DC A2004H-2X09P 12.00 15.90
A2004H-2X10P 14.00 17.90
A2004H-2X11P 16.00 19.90
A2004H-2X12P 18.00 21.90
A2004H-2X13P 20.00 23.90
A2004H-2X14P 22.00 25.90
A2004H-2X15P 24.00 27.90
A2004H-2X16P 26.00 29.90
A2004H-2X17P 28.00 31.90
A2004H-2X18P 30.00 33.90
A2004H-2X19P 32.00 35.90
A2004H-2X20P 34.00 37.90
A2004H-2X21P 36.00 39.90
A2004H-2X22P 38.00 41.90
A2004H-2X23P 40.00 43.90
A2004H-2X24P 42.00 45.90
44.00 47.90
46.00 49.90

Unit:mm

A2004WV-2 2.00mm pitch 180° Dual Row Wafer

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated PART NO. Dimensions
Wafer: Nylon 66,UL94V-0
A2004WV-2X02P AB
*Mates with H.R A2004H series dual row Housing A2004WV-2X03P
*Soldertail Length 2.00mm or 2.50mm is available A2004WV-2X04P 2.00 6.00
*Nylon 46 is available A2004WV-2X05P 4.00 8.00
A2004WV-2X06P 6.00 10.00
A2004WV-2X07P 8.00 12.00
A2004WV-2X08P 10.00 14.00
A2004WV-2X09P 12.00 16.00
A2004WV-2X10P 14.00 18.00
A2004WV-2X11P 16.00 20.00
A2004WV-2X12P 18.00 22.00
A2004WV-2X13P 20.00 24.00
A2004WV-2X14P 22.00 26.00
A2004WV-2X15P 24.00 28.00
A2004WV-2X16P 26.00 30.00
A2004WV-2X17P 28.00 32.00
A2004WV-2X18P 30.00 34.00
A2004WV-2X19P 32.00 36.00
A2004WV-2X20P 34.00 38.00
A2004WV-2X21P 36.00 40.00
A2004WV-2X22P 38.00 42.00
A2004WV-2X23P 40.00 44.00
A2004WV-2X24P 42.00 46.00
44.00 48.00
46.00 50.00

Unit:mm
