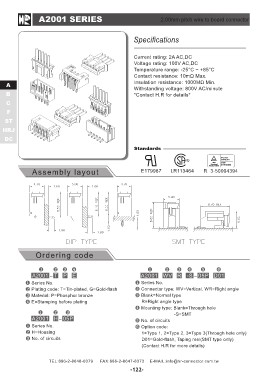

A2001 SERIES 2.00mm pitch wire to board connector

A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 100V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 800V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code

A2001 - T P E A2001 WV R -S - 05P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Blank=Normal type
E=Stamping before plating R=Right angle type
Mounting type: Blank=Through hole
A2001 H - 05P
-S=SMT
Series No. No. of circuits
H=Housing Option code:
No. of circuits 1=Type 1, 2=Type 2, 3=Type 3(Through hole only)
D01=Gold-flash, Taping reel(SMT type only)
(Contact H.R for more details)

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
