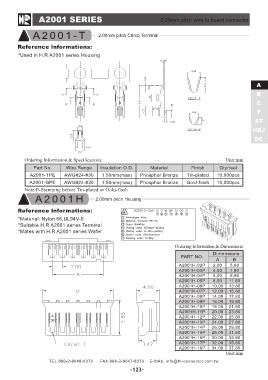

A2001 SERIES 2.00mm pitch wire to board connector

A2001-T 2.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2001 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A2001-TPE AWG#24-#30 1.50mm(max) Phosphor Bronze Gold-flash

A2001-GPE AWG#24-#30 1.50mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

A 2 0 0 1 H 2.00mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2001 series Terminal
*Mates with H.R A2001 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A2001H-02P AB
A2001H-03P
A2001H-04P 2.00 5.80
A2001H-05P 4.00 7.80
A2001H-06P 6.00 9.80
A2001H-07P 8.00 11.80
A2001H-08P 10.00 13.80
A2001H-09P 12.00 15.80
A2001H-10P 14.00 17.80
A2001H-11P 16.00 19.80
A2001H-12P 18.00 21.80
A2001H-13P 20.00 23.80
A2001H-14P 22.00 25.80
A2001H-15P 24.00 27.80
A2001H-16P 26.00 29.80
A2001H-17P 28.00 31.80
A2001H-18P 30.00 33.80
32.00 35.80
34.00 37.80

Unit:mm
