P. 135

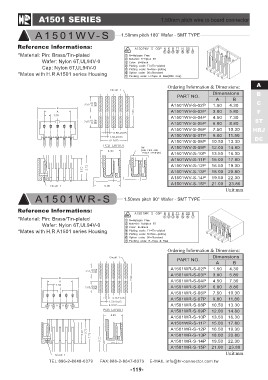

A1501 SERIES 1.50mm pitch wire to board connector
A1501WV-S 1.50mm pitch 180˚ Wafer - SMT TYPE
Reference lnformations: Ordering Information & Dimensions: A
*Material: Pin: Brass/Tin-plated B
PART NO. Dimensions C
Wafer: Nylon 6T,UL94V-0 AB F
Cap: Nylon 6T,UL94V-0 ST
*Mates with H.R A1501 series Housing A1501WV-S-02P 1.50 4.30 HRJ
DC
A1501WR-S A1501WV-S-03P 3.00 5.80
Reference lnformations: A1501WV-S-04P 4.50 7.30
*Material: Pin: Brass/Tin-plated
A1501WV-S-05P 6.00 8.80
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1501 series Housing A1501WV-S-06P 7.50 10.30
A1501WV-S-07P 9.00 11.80
A1501WV-S-08P 10.50 13.30
A1501WV-S-09P 12.00 14.80
A1501WV-S-10P 13.50 16.30
A1501WV-S-11P 15.00 17.80
A1501WV-S-12P 16.50 19.30
A1501WV-S-13P 18.00 20.80
A1501WV-S-14P 19.50 22.30
A1501WV-S-15P 21.00 23.80
Unit:mm
1.50mm pitch 90° Wafer - SMT TYPE
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1501WR-S-02P 1.50 4.30
A1501WR-S-03P 3.00 5.80
A1501WR-S-04P 4.50 7.30
A1501WR-S-05P 6.00 8.80
A1501WR-S-06P 7.50 10.30
A1501WR-S-07P 9.00 11.80
A1501WR-S-08P 10.50 13.30
A1501WR-S-09P 12.00 14.80
A1501WR-S-10P 13.50 16.30
A1501WR-S-11P 15.00 17.80
A1501WR-S-12P 16.50 19.30
A1501WR-S-13P 18.00 20.80
A1501WR-S-14P 19.50 22.30
A1501WR-S-15P 21.00 23.80
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
