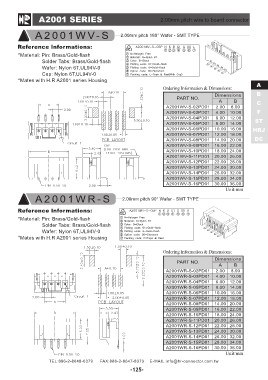

A2001 SERIES 2.00mm pitch wire to board connector

A2001WV-S 2.00mm pitch 180° Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions: A
*Material: Pin: Brass/Gold-flash B
PART NO. Dimensions C
Solder Tabs: Brass/Gold-flash F
Wafer: Nylon 6T,UL94V-0 A2001WV-S-02PD01 AB ST
Cap: Nylon 6T,UL94V-0 A2001WV-S-03PD01 2.00 8.00 HRJ
*Mates with H.R A2001 series Housing A2001WV-S-04PD01 4.00 10.00 DC
A2001WV-S-05PD01 6.00 12.00
A2001WR-S A2001WV-S-06PD01 8.00 14.00
A2001WV-S-07PD01 10.00 16.00
Reference lnformations: A2001WV-S-08PD01 12.00 18.00
*Material: Pin: Brass/Gold-flash A2001WV-S-09PD01 14.00 20.00
A2001WV-S-10PD01 16.00 22.00
Solder Tabs: Brass/Gold-flash A2001WV-S-11PD01 18.00 24.00
Wafer: Nylon 6T,UL94V-0 A2001WV-S-12PD01 20.00 26.00
*Mates with H.R A2001 series Housing A2001WV-S-13PD01 22.00 28.00
A2001WV-S-14PD01 24.00 30.00
A2001WV-S-15PD01 26.00 32.00
A2001WV-S-16PD01 28.00 34.00
30.00 36.00

Unit:mm

2.00mm pitch 90° Wafer - SMT TYPE

Ordering Information & Dimensions:

PART NO. Dimensions

A2001WR-S-02PD01 AB
A2001WR-S-03PD01 2.00 8.00
A2001WR-S-04PD01 4.00 10.00
A2001WR-S-05PD01 6.00 12.00
A2001WR-S-06PD01 8.00 14.00
A2001WR-S-07PD01 10.00 16.00
A2001WR-S-08PD01 12.00 18.00
A2001WR-S-09PD01 14.00 20.00
A2001WR-S-10PD01 16.00 22.00
A2001WR-S-11PD01 18.00 24.00
A2001WR-S-12PD01 20.00 26.00
A2001WR-S-13PD01 22.00 28.00
A2001WR-S-14PD01 24.00 30.00
A2001WR-S-15PD01 26.00 32.00
A2001WR-S-16PD01 28.00 34.00
30.00 36.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-125-
