P. 137

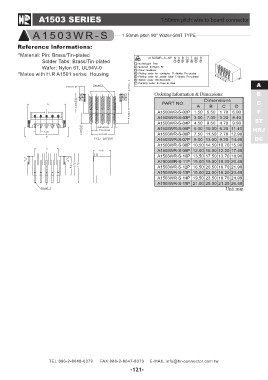

A1503 SERIES 1.50mm pitch wire to board connector
A1503WR-S 1.50mm pitch 90° Wafer-SMT TYPE
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T, UL94V-0
*Mates with H.R A1501 serise Housing
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
ABCD F
ST
A1503WR-S-02P 1.50 5.50 1.70 6.90 HRJ
DC
A1503WR-S-03P 3.00 7.00 3.20 8.40
A1503WR-S-04P 4.50 8.50 4.70 9.90
A1503WR-S-05P 6.00 10.00 6.20 11.40
A1503WR-S-06P 7.50 11.50 7.70 12.90
A1503WR-S-07P 9.00 13.00 9.20 14.40
A1503WR-S-08P 10.50 14.50 10.70 15.90
A1503WR-S-09P 12.00 16.00 12.20 17.40
A1503WR-S-10P 13.50 17.50 13.70 18.90
A1503WR-S-11P 15.00 19.00 15.20 20.40
A1503WR-S-12P 16.50 20.50 16.70 21.90
A1503WR-S-13P 18.00 22.00 18.20 23.40
A1503WR-S-14P 19.50 23.50 19.70 24.90
A1503WR-S-15P 21.00 25.00 21.20 26.40
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-121-
