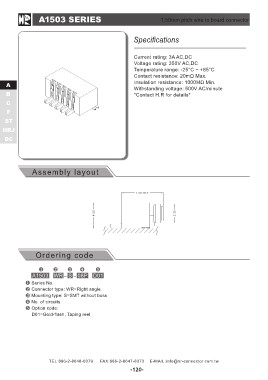

A1503 SERIES 1.50mm pitch wire to board connector
A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 350V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*
Ordering code
A1503 WR - S - 08P D01
Series No.
Connector type: WR=Right angle
Mounting type: S=SMT without boss
No. of circuits
Option code:
D01=Gold-flash, Taping reel
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
