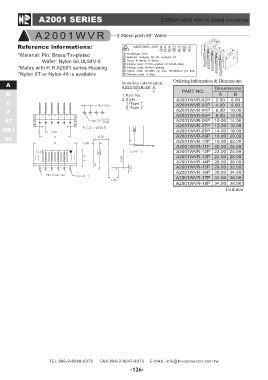

A2001 SERIES 2.00mm pitch wire to board connector

A2001WVR 2.00mm pitch 90° Wafer

Reference lnformations: Ordering Information: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated A2001WVR-XP ＊
PART NO. Dimensions
Wafer: Nylon 66,UL94V-0 12
*Mates with H.R A2001 series Housing A2001WVR-02P AB
*Nylon 6T or Nylon 46 is available 1.Part No. A2001WVR-03P 2.00 6.00
2.Style: A2001WVR-04P 4.00 8.00
A A2001WVR-05P 6.00 10.00
B 1-Type 1 A2001WVR-06P 8.00 12.00
C 2-Type 2 A2001WVR-07P 10.00 14.00
F A2001WVR-08P 12.00 16.00
ST A2001WVR-09P 14.00 18.00
HRJ A2001WVR-10P 16.00 20.00
DC A2001WVR-11P 18.00 22.00
A2001WVR-12P 20.00 24.00
A2001WVR-13P 22.00 26.00
A2001WVR-14P 24.00 28.00
A2001WVR-15P 26.00 30.00
A2001WVR-16P 28.00 32.00
A2001WVR-17P 30.00 34.00
A2001WVR-18P 32.00 36.00

34.00 38.00

Unit:mm
