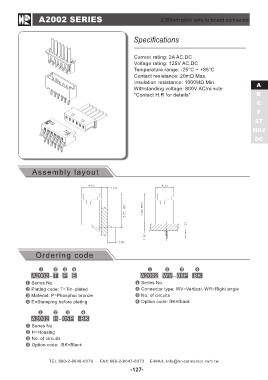

A2002 SERIES               2.00mm pitch wire to board connector
Assembly layout
                             Specifications

                             Current rating: 2A AC,DC                               A
                             Voltage rating: 125V AC,DC                             B
                             Temperature range: -25°C ~ +85°C                       C
                             Contact resistance: 20mΩ Max.                          F
                             Insulation resistance: 1000MΩ Min.                    ST
                             Withstanding voltage: 800V AC/minute                 HRJ
                             *Contact H.R for details*                             DC

Ordering code

A2002 - T P E                A2002 WV - 05P BK

Series No.                   Series No.
Plating code: T=Tin–plated   Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze  No. of circuits
E=Stamping before plating    Option code: BK=Black

A2002 H - 05P -BK

Series No.
H=Housing
No. of circuits
Option code: -BK=Black

TEL:886-2-8648-0379          FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
