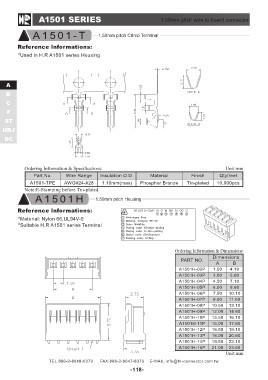

A1501 SERIES 1.50mm pitch wire to board connector

A1501-T 1.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1501 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A1501-TPE AWG#24-#28 1.10mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A 1 5 0 1 H 1.50mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1501 series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1501H-02P 1.50 4.10

A1501H-03P 3.00 5.60

A1501H-04P 4.50 7.10

A1501H-05P 6.00 8.60

A1501H-06P 7.50 10.10

A1501H-07P 9.00 11.60

A1501H-08P 10.50 13.10

A1501H-09P 12.00 14.60

A1501H-10P 13.50 16.10

A1501H-11P 15.00 17.60

A1501H-12P 16.50 19.10

A1501H-13P 18.00 20.60

A1501H-14P 19.50 22.10

A1501H-15P 21.00 23.60

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-118-
