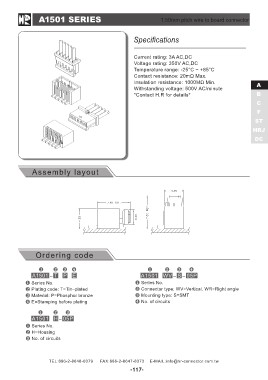

A1501 SERIES 1.50mm pitch wire to board connector
Assembly layout
Specifications
Current rating: 3A AC,DC A
Voltage rating: 350V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC
Ordering code A1501 WV - S - 05P
A1501 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. Mounting type: S=SMT
Plating code: T=Tin–plated No. of circuits
Material: P=Phosphor bronze
E=Stamping before plating
A1501 H - 05P
Series No.
H=Housing
No. of circuits
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-117-
