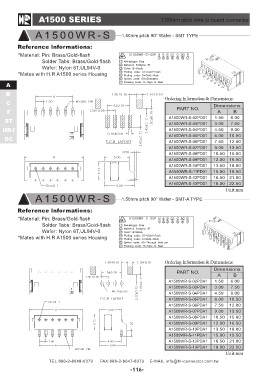

A1500 SERIES 1.50mm pitch wire to board connector

A1500WR-S 1.50mm pitch 90° Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-flash
PART NO. Dimensions
Solder Tabs: Brass/Gold-flash AB
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1500 series Housing A1500WR-S-02PD01 1.50 6.00
A A1500WR-S-03PD01 3.00 7.50
B
C A1500WR-S-04PD01 4.50 9.00
F A1500WR-S-05PD01 6.00 10.50
ST
HRJ A1500WR-S-06PD01 7.50 12.00
DC A1500WR-S-07PD01 9.00 13.50

A1500WR-S A1500WR-S-08PD01 10.50 15.00

Reference lnformations: A1500WR-S-09PD01 12.00 16.50
*Material: Pin: Brass/Gold-flash A1500WR-S-10PD01 13.50 18.00

Solder Tabs: Brass/Gold-flash A1500WR-S-11PD01 15.00 19.50
Wafer: Nylon 6T,UL94V-0 A1500WR-S-12PD01 16.50 21.00
*Mates with H.R A1500 series Housing
A1500WR-S-13PD01 18.00 22.50

Unit:mm

1.50mm pitch 90° Wafer - SMT-A TYPE

Ordering Information & Dimensions:

PART NO. Dimensions
AB
A1500WR-S-02PDA1
A1500WR-S-03PDA1 1.50 6.00
A1500WR-S-04PDA1 3.00 7.50
A1500WR-S-05PDA1 4.50 9.00
A1500WR-S-06PDA1 6.00 10.50
A1500WR-S-07PDA1 7.50 12.00
A1500WR-S-08PDA1 9.00 13.50
A1500WR-S-09PDA1 10.50 15.00
A1500WR-S-10PDA1 12.00 16.50
A1500WR-S-11PDA1 13.50 18.00
A1500WR-S-12PDA1 15.00 19.50
A1500WR-S-13PDA1 16.50 21.00
18.00 22.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-116-
