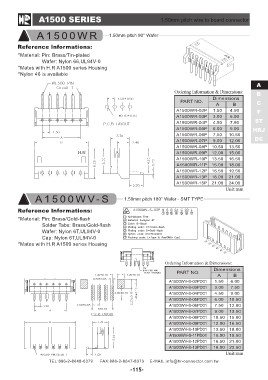

A1500 SERIES 1.50mm pitch wire to board connector
A 1 5 0 0 W R 1.50mm pitch 90° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A1500 series Housing
*Nylon 46 is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
A1500WR-02P 1.50 4.50 HRJ
DC
A1500WR-03P 3.00 6.00
A1500WR-04P 4.50 7.50
A1500WR-05P 6.00 9.00
A1500WR-06P 7.50 10.50
A1500WR-07P 9.00 12.00
A1500WR-08P 10.50 13.50
A1500WR-09P 12.00 15.00
A1500WR-10P 13.50 16.50
A1500WR-11P 15.00 18.00
A1500WR-12P 16.50 19.50
A1500WR-13P 18.00 21.00
A1500WR-15P 21.00 24.00
Unit:mm
A1500WV-S 1.50mm pitch 180° Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Solder Tabs: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A1500 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1500WV-S-02PD01 1.50 6.00
A1500WV-S-03PD01 3.00 7.50
A1500WV-S-04PD01 4.50 9.00
A1500WV-S-05PD01 6.00 10.50
A1500WV-S-06PD01 7.50 12.00
A1500WV-S-07PD01 9.00 13.50
A1500WV-S-08PD01 10.50 15.00
A1500WV-S-09PD01 12.00 16.50
A1500WV-S-10PD01 13.50 18.00
A1500WV-S-11PD01 15.00 19.50
A1500WV-S-12PD01 16.50 21.00
A1500WV-S-13PD01 18.00 22.50
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
