P. 130

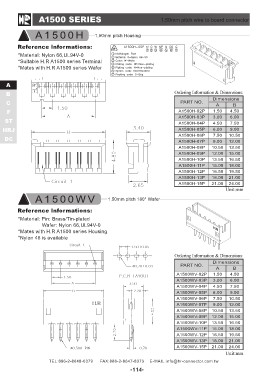

A1500 SERIES 1.50mm pitch wire to board connector
A 1 5 0 0 H 1.50mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A1500 series Terminal
*Mates with H.R A1500 series Wafer
A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A1500H-02P 1.50 4.50
DC
A1500H-03P 3.00 6.00
A1500H-04P 4.50 7.50
A1500H-05P 6.00 9.00
A1500H-06P 7.50 10.50
A1500H-07P 9.00 12.00
A1500H-08P 10.50 13.50
A1500H-09P 12.00 15.00
A1500H-10P 13.50 16.50
A1500H-11P 15.00 18.00
A1500H-12P 16.50 19.50
A1500H-13P 18.00 21.00
A1500H-15P 21.00 24.00
Unit:mm
A1500WV 1.50mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A1500 series Housing
*Nylon 46 is available
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1500WV-02P 1.50 4.50
A1500WV-03P 3.00 6.00
A1500WV-04P 4.50 7.50
A1500WV-05P 6.00 9.00
A1500WV-06P 7.50 10.50
A1500WV-07P 9.00 12.00
A1500WV-08P 10.50 13.50
A1500WV-09P 12.00 15.00
A1500WV-10P 13.50 16.50
A1500WV-11P 15.00 18.00
A1500WV-12P 16.50 19.50
A1500WV-13P 18.00 21.00
A1500WV-15P 21.00 24.00
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-114-
