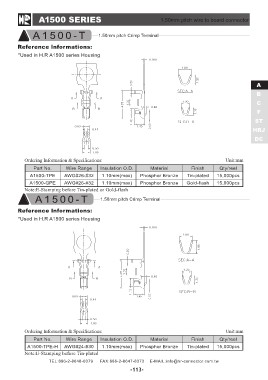

A1500 SERIES 1.50mm pitch wire to board connector

A1500-T 1.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1500 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
A1500-TPE AWG#26-#32 1.10mm(max) Phosphor Bronze Gold-flash

A1500-GPE AWG#26-#32 1.10mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash

A1500-T 1.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1500 series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

A1500-TPE-H AWG#24-#30 1.10mm(max) Phosphor Bronze Tin-plated 15,000pcs
Note:E-Stamping before Tin-plated
