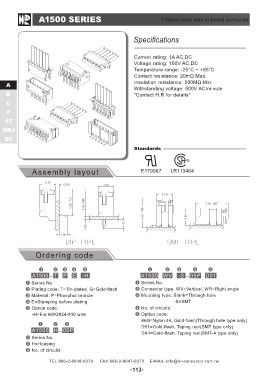

A1500 SERIES 1.50mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 100V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code

A1500 - T P E -H A1500 WV -S - 05P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Mounting type: Blank=Through hole
E=Stamping before plating
Option code: -S=SMT
-H=For AWG#24-#30 wire No. of circuits
Option code:
A1500 H - 05P 46G=Nylon 46, Gold-flash(Through hole type only)
D01=Gold-flash, Taping reel(SMT type only)
Series No. DA1=Gold-flash, Taping reel(SMT-A type only)
H=Housing
No. of circuits
