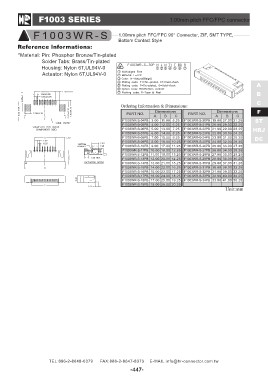

F1003 SERIES 1.00mm pitch FFC/FPC connector
F1003WR-S 1.00mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Bottom Contact Style
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Brass/Tin-plated
Housing: Nylon 6T,UL94V-0
Actuator: Nylon 6T,UL94V-0
Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
ABC ABC F
ST
F1003WR-S-04PB 3.00 11.00 5.25 F1003WR-S-20PB 19.00 27.00 21.25 HRJ
DC
F1003WR-S-05PB 4.00 12.00 6.25 F1003WR-S-21PB 20.00 28.00 22.25
F1003WR-S-06PB 5.00 13.00 7.25 F1003WR-S-22PB 21.00 29.00 23.25
F1003WR-S-07PB 6.00 14.00 8.25 F1003WR-S-23PB 22.00 30.00 24.25
F1003WR-S-08PB 7.00 15.00 9.25 F1003WR-S-24PB 23.00 31.00 25.25
F1003WR-S-09PB 8.00 16.00 10.25 F1003WR-S-25PB 24.00 32.00 26.25
F1003WR-S-10PB 9.00 17.00 11.25 F1003WR-S-26PB 25.00 33.00 27.25
F1003WR-S-11PB 10.00 18.00 12.25 F1003WR-S-27PB 26.00 34.00 28.25
F1003WR-S-12PB 11.00 19.00 13.25 F1003WR-S-28PB 27.00 35.00 29.25
F1003WR-S-13PB 12.00 20.00 14.25 F1003WR-S-29PB 28.00 36.00 30.25
F1003WR-S-14PB 13.00 21.00 15.25 F1003WR-S-30PB 29.00 37.00 31.25
F1003WR-S-15PB 14.00 22.00 16.25 F1003WR-S-31PB 30.00 38.00 32.25
F1003WR-S-16PB 15.00 23.00 17.25 F1003WR-S-32PB 31.00 39.00 33.25
F1003WR-S-17PB 16.00 24.00 18.25 F1003WR-S-33PB 32.00 40.00 34.25
F1003WR-S-18PB 17.00 25.00 19.25 F1003WR-S-34PB 33.00 41.00 35.25
F1003WR-S-19PB 18.00 26.00 20.25
Unit:mm
