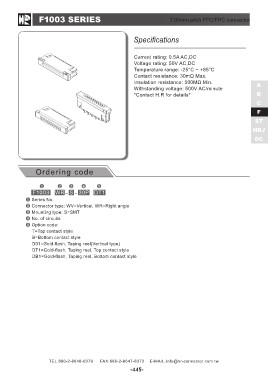

F1003 SERIES                                       1.00mm pitch FFC/FPC connector

                     Specifications

                     Current rating: 0.5A AC,DC                                      A
                     Voltage rating: 50V AC,DC                                       B
                     Temperature range: -25°C ~ +85°C                                C
                     Contact resistance: 30mΩ Max.                                   F
                     Insulation resistance: 500MΩ Min.                              ST
                     Withstanding voltage: 500V AC/minute                          HRJ
                     *Contact H.R for details*                                      DC

 Ordering code

F1003 WR - S - 30P DT1

Series No.
Connector type: WV=Vertical, WR=Right angle
Mounting type: S=SMT
No. of circuits
Option code:
T=Top contact style
B=Bottom contact style
D01=Gold-flash, Taping reel(Vertical type)
DT1=Gold-flash, Taping reel, Top contact style
DB1=Gold-flash, Taping reel, Bottom contact style

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
