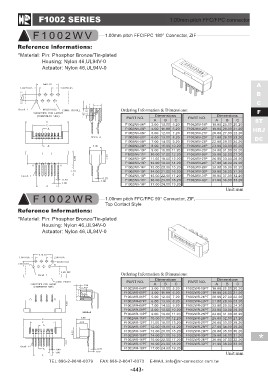

F1002 SERIES 1.00mm pitch FFC/FPC connector

FA10080020WH VI 1.00mm pitch FFC/FPC 180° Connector, ZIF

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: Nylon 46,UL94V-0
Actuator: Nylon 46,UL94V-0

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
ABC ABC F
F1002WV-04P 3.00 10.00 5.20 F1002WV-19P 18.00 25.00 20.20 ST
F1002WV-05P 4.00 11.00 6.20 F1002WV-20P 19.00 26.00 21.20 HRJ
F1002WV-06P 5.00 12.00 7.20 F1002WV-21P 20.00 27.00 22.20 DC
F1002WV-07P 6.00 13.00 8.20 F1002WV-22P 21.00 28.00 23.20
F1002WV-08P 7.00 14.00 9.20 F1002WV-23P 22.00 29.00 24.20
F1002WV-09P 8.00 15.00 10.20 F1002WV-24P 23.00 30.00 25.20
F1002WV-10P 9.00 16.00 11.20 F1002WV-25P 24.00 31.00 26.20
F1002WV-11P 10.00 17.00 12.20 F1002WV-26P 25.00 32.00 27.20
F1002WV-12P 11.00 18.00 13.20 F1002WV-27P 26.00 33.00 28.20
F1002WV-13P 12.00 19.00 14.20 F1002WV-28P 27.00 34.00 29.20
F1002WV-14P 13.00 20.00 15.20 F1002WV-29P 28.00 35.00 30.20
F1002WV-15P 14.00 21.00 16.20 F1002WV-30P 29.00 36.00 31.20
F1002WV-16P 15.00 22.00 17.20 F1002WV-31P 30.00 37.00 32.20
F1002WV-17P 16.00 23.00 18.20 F1002WV-32P 31.00 38.00 33.20
F1002WV-18P 17.00 24.00 19.20
Unit:mm

FA10080020WH RI 1.00mm pitch FFC/FPC 90° Connector, ZIF,
Top Contact Style
Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: Nylon 46,UL94V-0
Actuator: Nylon 46,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions *
ABC ABC
F1002WR-04PT 3.00 10.00 5.20 F1002WR-19PT 18.00 25.00 20.20
F1002WR-05PT 4.00 11.00 6.20 F1002WR-20PT 19.00 26.00 21.20
F1002WR-06PT 5.00 12.00 7.20 F1002WR-21PT 20.00 27.00 22.20
F1002WR-07PT 6.00 13.00 8.20 F1002WR-22PT 21.00 28.00 23.20
F1002WR-08PT 7.00 14.00 9.20 F1002WR-23PT 22.00 29.00 24.20
F1002WR-09PT 8.00 15.00 10.20 F1002WR-24PT 23.00 30.00 25.20
F1002WR-10PT 9.00 16.00 11.20 F1002WR-25PT 24.00 31.00 26.20
F1002WR-11PT 10.00 17.00 12.20 F1002WR-26PT 25.00 32.00 27.20
F1002WR-12PT 11.00 18.00 13.20 F1002WR-27PT 26.00 33.00 28.20
F1002WR-13PT 12.00 19.00 14.20 F1002WR-28PT 27.00 34.00 29.20
F1002WR-14PT 13.00 20.00 15.20 F1002WR-29PT 28.00 35.00 30.20
F1002WR-15PT 14.00 21.00 16.20 F1002WR-30PT 29.00 36.00 31.20
F1002WR-16PT 15.00 22.00 17.20 F1002WR-31PT 30.00 37.00 32.20
F1002WR-17PT 16.00 23.00 18.20 F1002WR-32PT 31.00 38.00 33.20
F1002WR-18PT 17.00 24.00 19.20
Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
