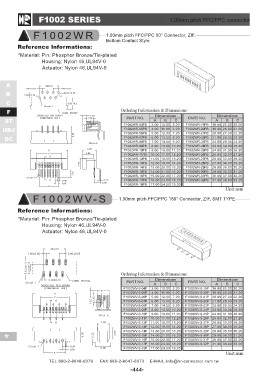

F1002 SERIES 1.00mm pitch FFC/FPC connector

FA10080020WH IR 1.00mm pitch FFC/FPC 90° Connector, ZIF,
Bottom Contact Style
Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: Nylon 46,UL94V-0
Actuator: Nylon 46,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F ABC ABC
ST F1002WR-04PB 3.00 10.00 5.20 F1002WR-19PB 18.00 25.00 20.20
HRJ F1002WR-05PB 4.00 11.00 6.20 F1002WR-20PB 19.00 26.00 21.20
DC F1002WR-06PB 5.00 12.00 7.20 F1002WR-21PB 20.00 27.00 22.20
F1002WR-07PB 6.00 13.00 8.20 F1002WR-22PB 21.00 28.00 23.20
F1002WR-08PB 7.00 14.00 9.20 F1002WR-23PB 22.00 29.00 24.20
F1002WR-09PB 8.00 15.00 10.20 F1002WR-24PB 23.00 30.00 25.20
F1002WR-10PB 9.00 16.00 11.20 F1002WR-25PB 24.00 31.00 26.20
F1002WR-11PB 10.00 17.00 12.20 F1002WR-26PB 25.00 32.00 27.20
F1002WR-12PB 11.00 18.00 13.20 F1002WR-27PB 26.00 33.00 28.20
F1002WR-13PB 12.00 19.00 14.20 F1002WR-28PB 27.00 34.00 29.20
F1002WR-14PB 13.00 20.00 15.20 F1002WR-29PB 28.00 35.00 30.20
F1002WR-15PB 14.00 21.00 16.20 F1002WR-30PB 29.00 36.00 31.20
F1002WR-16PB 15.00 22.00 17.20 F1002WR-31PB 30.00 37.00 32.20
F1002WR-17PB 16.00 23.00 18.20 F1002WR-32PB 31.00 38.00 33.20
F1002WR-18PB 17.00 24.00 19.20
Unit:mm

FA10080020WH VI - S 1.00mm pitch FFC/FPC 180° Connector, ZIF, SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: Nylon 46,UL94V-0
Actuator: Nylon 46,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
ABC ABC

F1002WV-S-04P 3.00 10.00 5.20 F1002WV-S-19P 18.00 25.00 20.20

F1002WV-S-05P 4.00 11.00 6.20 F1002WV-S-20P 19.00 26.00 21.20

F1002WV-S-06P 5.00 12.00 7.20 F1002WV-S-21P 20.00 27.00 22.20

F1002WV-S-07P 6.00 13.00 8.20 F1002WV-S-22P 21.00 28.00 23.20

F1002WV-S-08P 7.00 14.00 9.20 F1002WV-S-23P 22.00 29.00 24.20

F1002WV-S-09P 8.00 15.00 10.20 F1002WV-S-24P 23.00 30.00 25.20

F1002WV-S-10P 9.00 16.00 11.20 F1002WV-S-25P 24.00 31.00 26.20

F1002WV-S-11P 10.00 17.00 12.20 F1002WV-S-26P 25.00 32.00 27.20

F1002WV-S-12P 11.00 18.00 13.20 F1002WV-S-27P 26.00 33.00 28.20

F1002WV-S-13P 12.00 19.00 14.20 F1002WV-S-28P 27.00 34.00 29.20

F1002WV-S-14P 13.00 20.00 15.20 F1002WV-S-29P 28.00 35.00 30.20

* F1002WV-S-15P 14.00 21.00 16.20 F1002WV-S-30P 29.00 36.00 31.20
F1002WV-S-16P 15.00 22.00 17.20 F1002WV-S-31P 30.00 37.00 32.20
F1002WV-S-17P 16.00 23.00 18.20 F1002WV-S-32P 31.00 38.00 33.20

F1002WV-S-18P 17.00 24.00 19.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
