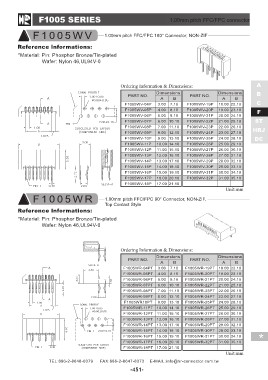

F1005 SERIES 1.00mm pitch FFC/FPC connector

FA10080050WH VI 1.00mm pitch FFC/FPC 180° Connector, NON-ZIF

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 46,UL94V-0

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
F1005WV-04P F1005WV-19P ST
F1005WV-05P 3.00 7.10 F1005WV-20P 18.00 22.10 HRJ
4.00 8.10 19.00 23.10 DC
20.00 24.10
F1005WV-06P 5.00 9.10 F1005WV-21P 21.00 25.10
F1005WV-07P 6.00 10.10 F1005WV-22P 22.00 26.10
23.00 27.10
F1005WV-08P 7.00 11.10 F1005WV-23P 24.00 28.10
F1005WV-09P 8.00 12.10 F1005WV-24P 25.00 29.10
26.00 30.10
F1005WV-10P 9.00 13.10 F1005WV-25P 27.00 31.10
F1005WV-11P 10.00 14.10 F1005WV-26P 28.00 32.10
29.00 33.10
F1005WV-12P 11.00 15.10 F1005WV-27P 30.00 34.10
F1005WV-13P 12.00 16.10 F1005WV-28P 31.00 35.10

F1005WV-14P 13.00 17.10 F1005WV-29P Unit:mm
F1005WV-15P 14.00 18.10 F1005WV-30P

F1005WV-16P 15.00 19.10 F1005WV-31P
F1005WV-17P 16.00 20.10 F1005WV-32P

F1005WV-18P 17.00 21.10

FA10080050WH RI 1.00mm pitch FFC/FPC 90° Connector, NON-ZIF,
Top Contact Style
Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 46,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
F1005WR-04PT F1005WR-19PT
F1005WR-05PT 3.00 7.10 F1005WR-20PT 18.00 22.10
4.00 8.10 19.00 23.10

F1005WR-06PT 5.00 9.10 F1005WR-21PT 20.00 24.10

F1005WR-07PT 6.00 10.10 F1005WR-22PT 21.00 25.10

F1005WR-08PT 7.00 11.10 F1005WR-23PT 22.00 26.10

F1005WR-09PT 8.00 12.10 F1005WR-24PT 23.00 27.10
F1005WR10PT 9.00 13.10 F1005WR-25PT 24.00 28.10

F1005WR-11PT 10.00 14.10 F1005WR-26PT 25.00 29.10
F1005WR-12PT 11.00 15.10 F1005WR-27PT 26.00 30.10

F1005WR-13PT 12.00 16.10 F1005WR-28PT 27.00 31.10
F1005WR-14PT 13.00 17.10 F1005WR-29PT 28.00 32.10

F1005WR-15PT 14.00 18.10 F1005WR-30PT 29.00 33.10 *
F1005WR-16PT 15.00 19.10 F1005WR-31PT 30.00 34.10

F1005WR-17PT 16.00 20.10 F1005WR-32PT 31.00 35.10
F1005WR-18PT 17.00 21.10
Unit:mm
