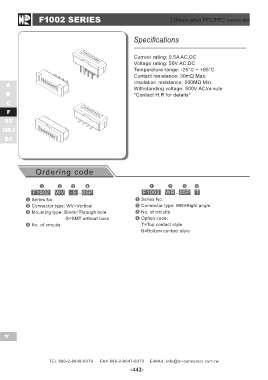

F1002 SERIES                                        1.00mm pitch FFC/FPC connector

  A                                          Specifications
  B
  C                                          Current rating: 0.5A AC,DC
  F                                          Voltage rating: 50V AC,DC
 ST                                          Temperature range: -25°C ~ +85°C
HRJ                                          Contact resistance: 30mΩ Max.
 DC                                          Insulation resistance: 500MΩ Min.
                                             Withstanding voltage: 500V AC/minute
                                             *Contact H.R for details*

   AOsrsdeemribnlgy lcaoydoeut               F1002 WR - 05P T

   F1002 WV -S - 05P                         Series No.
                                             Connector type: WR=Right angle
   Series No.                                No. of circuits
   Connector type: WV=Vertical               Option code:
   Mounting type: Blank=Through hole         T=Top contact style
                                             B=Bottom contact style
                        -S=SMT without boss
   No. of circuits

*

   TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
