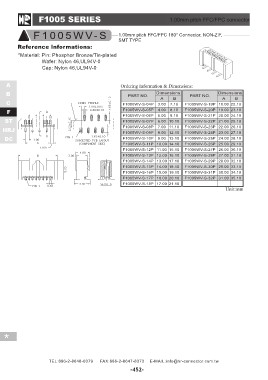

F1005 SERIES 1.00mm pitch FFC/FPC connector

FA10080050WH IV - S 1.00mm pitch FFC/FPC 180° Connector, NON-ZIF,
SMT TYPE
Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 46,UL94V-0
Cap: Nylon 46,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F AB AB
ST
HRJ F1005WV-S-04P 3.00 7.10 F1005WV-S-19P 18.00 22.10
DC
F1005WV-S-05P 4.00 8.10 F1005WV-S-20P 19.00 23.10

F1005WV-S-06P 5.00 9.10 F1005WV-S-21P 20.00 24.10
F1005WV-S-07P 6.00 10.10 F1005WV-S-22P 21.00 25.10

F1005WV-S-08P 7.00 11.10 F1005WV-S-23P 22.00 26.10
F1005WV-S-09P 8.00 12.10 F1005WV-S-24P 23.00 27.10

F1005WV-S-10P 9.00 13.10 F1005WV-S-25P 24.00 28.10
F1005WV-S-11P 10.00 14.10 F1005WV-S-26P 25.00 29.10

F1005WV-S-12P 11.00 15.10 F1005WV-S-27P 26.00 30.10
F1005WV-S-13P 12.00 16.10 F1005WV-S-28P 27.00 31.10

F1005WV-S-14P 13.00 17.10 F1005WV-S-29P 28.00 32.10
F1005WV-S-15P 14.00 18.10 F1005WV-S-30P 29.00 33.10

F1005WV-S-16P 15.00 19.10 F1005WV-S-31P 30.00 34.10
F1005WV-S-17P 16.00 20.10 F1005WV-S-32P 31.00 35.10

F1005WV-S-18P 17.00 21.10

Unit:mm

*
