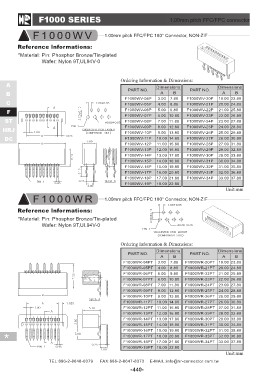

F1000 SERIES 1.00mm pitch FFC/FPC connector
F1000WV 1.00mm pitch FFC/FPC 180° Connector, NON-ZIF
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 9T,UL94V-0
A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F F1000WV-04P AB F1000WV-20P AB
ST
HRJ 3.00 7.80 19.00 23.80
DC 20.00 24.80
F1000WV-05P 4.00 8.80 F1000WV-21P 21.00 25.80
F1000WV-06P 5.00 9.80 F1000WV-22P 22.00 26.80
23.00 27.80
F1000WV-07P 6.00 10.80 F1000WV-23P 24.00 28.80
F1000WV-08P 7.00 11.80 F1000WV-24P 25.00 29.80
26.00 30.80
F1000WV-09P 8.00 12.80 F1000WV-25P 27.00 31.80
F1000WV-10P 9.00 13.80 F1000WV-26P 28.00 32.80
29.00 33.80
F1000WV-11P 10.00 14.80 F1000WV-27P 30.00 34.80
F1000WV-12P 11.00 15.80 F1000WV-28P 31.00 35.80
32.00 36.80
F1000WV-13P 12.00 16.80 F1000WV-29P 33.00 37.80
F1000WV-14P 13.00 17.80 F1000WV-30P
Unit:mm
F1000WV-15P 14.00 18.80 F1000WV-31P
F1000WV-16P 15.00 19.80 F1000WV-32P
F1000WV-17P 16.00 20.80 F1000WV-33P
F1000WV-18P 17.00 21.80 F1000WV-34P
F1000WV-19P 18.00 22.80
F1000WR 1.00mm pitch FFC/FPC 180° Connector, NON-ZIF
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 9T,UL94V-0
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
AB AB
F1000WR-04PT 3.00 7.80 F1000WR-20PT 19.00 23.80
F1000WR-05PT 4.00 8.80 F1000WR-21PT 20.00 24.80
F1000WR-06PT 5.00 9.80 F1000WR-22PT 21.00 25.80
F1000WR-07PT 6.00 10.80 F1000WR-23PT 22.00 26.80
F1000WR-08PT 7.00 11.80 F1000WR-24PT 23.00 27.80
F1000WR-09PT 8.00 12.80 F1000WR-25PT 24.00 28.80
F1000WR-10PT 9.00 13.80 F1000WR-26PT 25.00 29.80
F1000WR-11PT 10.00 14.80 F1000WR-27PT 26.00 30.80
F1000WR-12PT 11.00 15.80 F1000WR-28PT 27.00 31.80
F1000WR-13PT 12.00 16.80 F1000WR-29PT 28.00 32.80
F1000WR-14PT 13.00 17.80 F1000WR-30PT 29.00 33.80
F1000WR-15PT 14.00 18.80 F1000WR-31PT 30.00 34.80
F1000WR-16PT 15.00 19.80 F1000WR-32PT 31.00 35.80
* F1000WR-17PT 16.00 20.80 F1000WR-33PT 32.00 36.80
F1000WR-18PT 17.00 21.80 F1000WR-34PT 33.00 37.80
F1000WR-19PT 18.00 22.80
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
