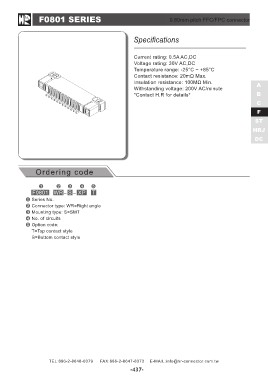

F0801 SERIES                  0.80mm pitch FFC/FPC connector

 Ordering code                  Specifications

F0801 WR - S - XP T             Current rating: 0.5A AC,DC                  A
                                Voltage rating: 30V AC,DC                   B
Series No.                      Temperature range: -25°C ~ +85°C            C
Connector type: WR=Right angle  Contact resistance: 20mΩ Max.               F
Mounting type: S=SMT            Insulation resistance: 100MΩ Min.          ST
No. of circuits                 Withstanding voltage: 200V AC/minute      HRJ
Option code:                    *Contact H.R for details*                  DC
T=Top contact style
B=Bottom contact style

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
