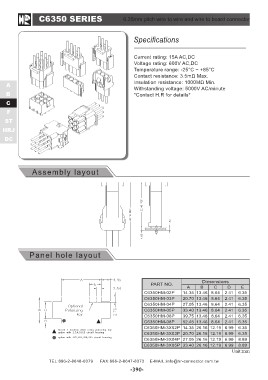

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

A Specifications
B
C Current rating: 15A AC,DC
F Voltage rating: 600V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 3.5mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 5000V AC/minute
*Contact H.R for details*

Assembly layout

Panel hole layout

PART NO. Dimensions
ABCDE

C6350HM-02P 14.35 13.46 8.64 2.41 6.35

C6350HM-03P 20.70 13.46 8.64 2.41 6.35

C6350HM-04P 27.05 13.46 8.64 2.41 6.35

C6350HM-05P 33.40 13.46 8.64 2.41 6.35

C6350HM-06P 39.75 13.46 8.64 2.41 6.35

C6350HM-08P 52.45 13.46 8.64 2.41 6.35

C6350HM-3X02P 14.35 26.16 12.19 6.99 6.35

C6350HM-3X03P 20.70 26.16 12.19 6.99 6.35

C6350HM-3X04P 27.05 26.16 12.19 6.99 8.89

C6350HM-3X05P 33.40 26.16 12.19 6.99 8.89

Unit:mm
