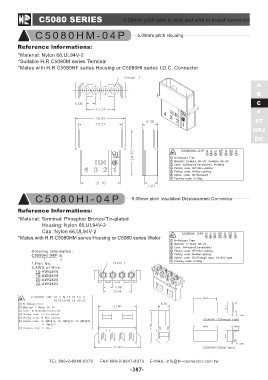

C5080 SERIES 5.08mm pitch wire to wire and wire to board connector

C 5 0 8 0 H M - 0 4 P 5.08mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C5080M series Terminal
*Mates with H.R C5080HF series Housing or C5080HI series I.D.C. Connector

A
B
C
F
ST
HRJ
DC

C5080HI-04P 5.08mm pitch Insulation Displacement Connector

Reference lnformations:

*Material: Terminal: Phosphor Bronze/Tin-plated
Housing: Nylon 66,UL94V-2
Cap: Nylon 66,UL94V-2

*Mates with H.R C5080HM series Housing or C5080 series Wafer

Ordering Information:
C5080HI-04P-＊

12

1.Part No.
2.AWG of Wire:

16-AWG#16
18-AWG#18
20-AWG#20
22-AWG#22

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-387-
