P. 63

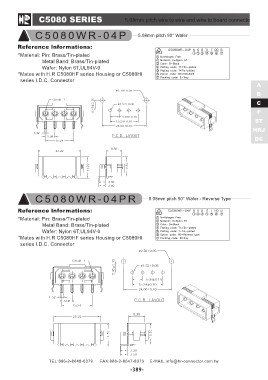

C5080 SERIES 5.08mm pitch wire to wire and wire to board connecto
C 5 0 8 0 W R - 0 4 P 5.08mm pitch 90° Wafer A
B
Reference lnformations: C
F
*Material: Pin: Brass/Tin-plated ST
Metal Band: Brass/Tin-plated HRJ
Wafer: Nylon 6T,UL94V-0 DC
*Mates with H.R C5080HF series Housing or C5080HI
series I.D.C. Connector
C5080WR-04PR 5.08mm pitch 90° Wafer - Reverse Type
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Metal Band: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0
*Mates with H.R C5080HF series Housing or C5080HI
series I.D.C. Connector
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-389-
