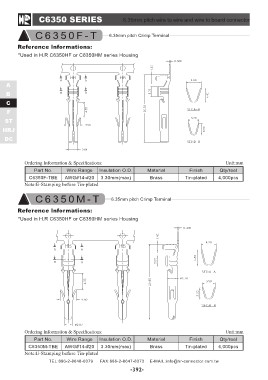

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C 6 3 5 0 F - T 6.35mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C6350HF or C6350HM series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 4,000pcs
Brass Tin-plated
C6350F-TBE AWG#14-#20 3.30mm(max)

Note:E-Stamping before Tin-plated

C 6 3 5 0 M - T 6.35mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C6350HF or C6350HM series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

C6350M-TBE AWG#14-#20 3.30mm(max) Brass Tin-plated 4,000pcs
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-392-
