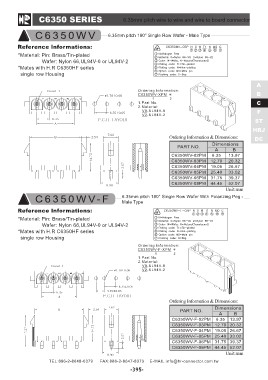

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C6350WV 6.35mm pitch 180° Single Row Wafer - Male Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
single row Housing

Ordering Information: A
C6350WV-XPM ＊ B
C
12 F
ST
1.Part No. HRJ
2.Material: DC

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350WV-02PM
C6350WV-03PM 6.35 13.97
C6350WV-04PM 12.70 20.32
C6350WV-05PM 19.05 26.67
C6350WV-06PM 25.40 33.02
C6350WV-08PM 31.75 39.37
44.45 52.07

Unit:mm

C6350WV-F 6.35mm pitch 180° Single Row Wafer With Polarizing Peg -
Male Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 or UL94V-2

*Mates with H.R C6350HF series
single row Housing

Ordering Information:
C6350WV-F-XPM ＊

12

1.Part No.
2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350WV-F-02PM
C6350WV-F-03PM 6.35 13.97
C6350WV-F-04PM 12.70 20.32
C6350WV-F-05PM 19.05 26.67
C6350WV-F-06PM 25.40 33.02
C6350WV-F-08PM 31.75 39.37
44.45 52.07

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-395-
