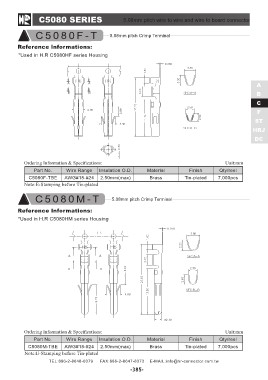

C5080 SERIES 5.08mm pitch wire to wire and wire to board connector

AC 05 80 08 00 HF -I T 5.08mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C5080HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 7,000pcs
Brass Tin-plated
C5080F-TBE AWG#18-#24 2.50mm(max)

Note:E-Stamping before Tin-plated

AC 05 80 08 0 HMI- T 5.08mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C5080HM series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

C5080M-TBE AWG#18-#24 2.50mm(max) Brass Tin-plated 7,000pcs
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-385-
