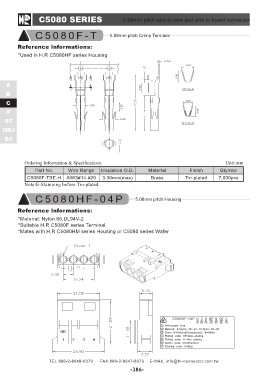

C5080 SERIES                           5.08mm pitch wire to wire and wire to board connector

     C5080F-T                               5.08mm pitch Crimp Terminal

     Reference lnformations:
     *Used in H.R C5080HF series Housing

  A
  B
  C
  F
 ST
HRJ
 DC

     Ordering Information & Speciļ¬cations:                                                       Unit:mm
                                                                                             Qty/reel
     Part No.  Wire Range Insulation O.D.   Material                       Finish            7,000pcs
                                             Brass                       Tin-plated
     C5080F-TBE-H AWG#14-#20 3.30mm(max)

     Note:E-Stamping before Tin-plated

          C 5 0 8 0 H F - 0 4 P 5.08mm pitch Housing

     Reference lnformations:

     *Material: Nylon 66,UL94V-2
     *Suitable H.R C5080F series Terminal
     *Mates with H.R C5080HM series Housing or C5080 series Wafer

     TEL:886-2-8648-0379                FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
