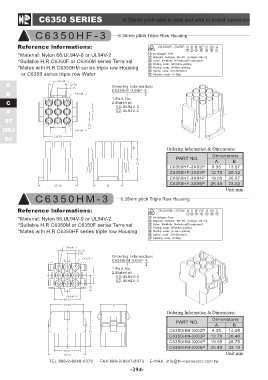

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C6350HF-3 6.35mm pitch Triple Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0 or UL94V-2
*Suitable H.R C6350F or C6350M series Terminal
*Mates with H.R C6350HM series triple row Housing

or C6350 series triple row Wafer

A Ordering Information:
B C6350HF-3XNP-＊
C
F 12
ST
HRJ 1.Part No.
DC 2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350HF-3X02P
C6350HF-3X03P 6.35 13.97
C6350HF-3X04P 12.70 20.32
C6350HF-3X05P 19.05 26.67
25.40 33.02

Unit:mm

C6350HM-3 6.35mm pitch Triple Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0 or UL94V-2
*Suitable H.R C6350M or C6350F series Terminal
*Mates with H.R C6350HF series triple row Housing

Ordering Information:
C6350HM-3XNP-＊

12

1.Part No.
2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350HM-3X02P
C6350HM-3X03P 6.35 14.05
C6350HM-3X04P 12.70 20.40
C6350HM-3X05P 19.05 26.75
25.40 33.10

Unit:mm
