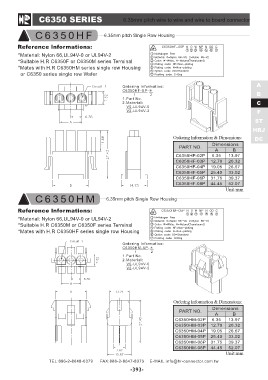

C6350 SERIES 6.35mm pitch wire to wire and wire to board connector

C6350HF 6.35mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0 or UL94V-2
*Suitable H.R C6350F or C6350M series Terminal
*Mates with H.R C6350HM series single row Housing
or C6350 series single row Wafer

Ordering Information: A
C6350HF-XP-＊ B
C
12 F
ST
1.Part No. HRJ
2.Material: DC

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C6350HF-02P
C6350HF-03P 6.35 13.97
C6350HF-04P 12.70 20.32
C6350HF-05P 19.05 26.67
C6350HF-06P 25.40 33.02
C6350HF-08P 31.75 39.37
44.45 52.07

Unit:mm

C6350HM 6.35mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0 or UL94V-2
*Suitable H.R C6350M or C6350F series Terminal
*Mates with H.R C6350HF series single row Housing

Ordering Information:
C6350HM-XP-＊

12

1.Part No.
2.Material:

V0-UL94V-0
V2-UL94V-2

Ordering Information & Dimensions:

PART NO. Dimensions
C6350HM-02P AB

6.35 13.97

C6350HM-03P 12.70 20.32
C6350HM-04P 19.05 26.67

C6350HM-05P 25.40 33.02

C6350HM-06P 31.75 39.37

C6350HM-08P 44.45 52.07

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-393-
