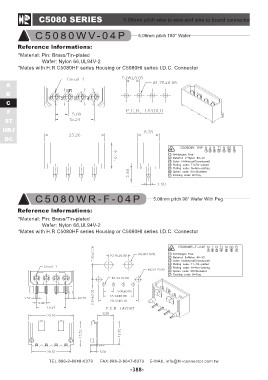

C5080 SERIES 5.08mm pitch wire to wire and wire to board connector

C 5 0 8 0 W V - 0 4 P 5.08mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C5080HF series Housing or C5080HI series I.D.C. Connector

A
B
C
F
ST
HRJ
DC

C 5 0 8 0 W R - F - 0 4 P 5.08mm pitch 90° Wafer With Peg

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C5080HF series Housing or C5080HI series I.D.C. Connector

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-388-
